Fabrix

Fabrix™ is a fabric acoustic panel system that uses proprietary polymer tracks made from unplasticized polyvinyl chloride (UPVC) to construct high-performance acoustic panels. These tracks securely hold both the acoustically-transparent fabric and the sound-absorbing substrate in place, supporting applications in acoustic panel construction, wall panels, and ceiling tiles.

Engineered with Anti-Warp and Anti-Slip features for secure and accurate installation, Fabrix™ is ideal for room acoustic treatment and soundproofing Singapore projects. As part of our commitment to sustainability, the system supports the use of low VOC materials and is designed for long-term durability, reducing environmental impact over time. With 46 profiles and counting, Fabrix™ is the world’s largest fabric acoustic system manufacturer, proudly designed in Singapore to meet the needs of modern architectural acoustic panels and acoustical performance.

Learn more at www.fabrix.com.

Polymer

15mm, 27mm, 53mm

BS 6853 Annex B = R < 1.0

EN 13501-1 : Class B, s1 d0

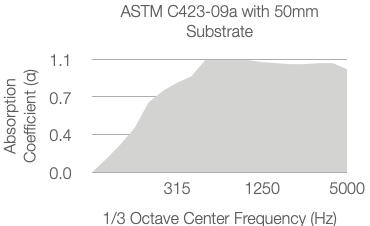

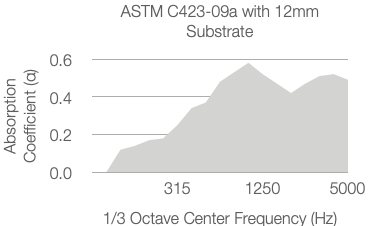

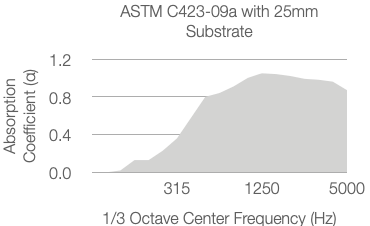

ASTM C423-09a = 0.75 (with 25mm Substrate)

Catalogue PDF

Images ZIP

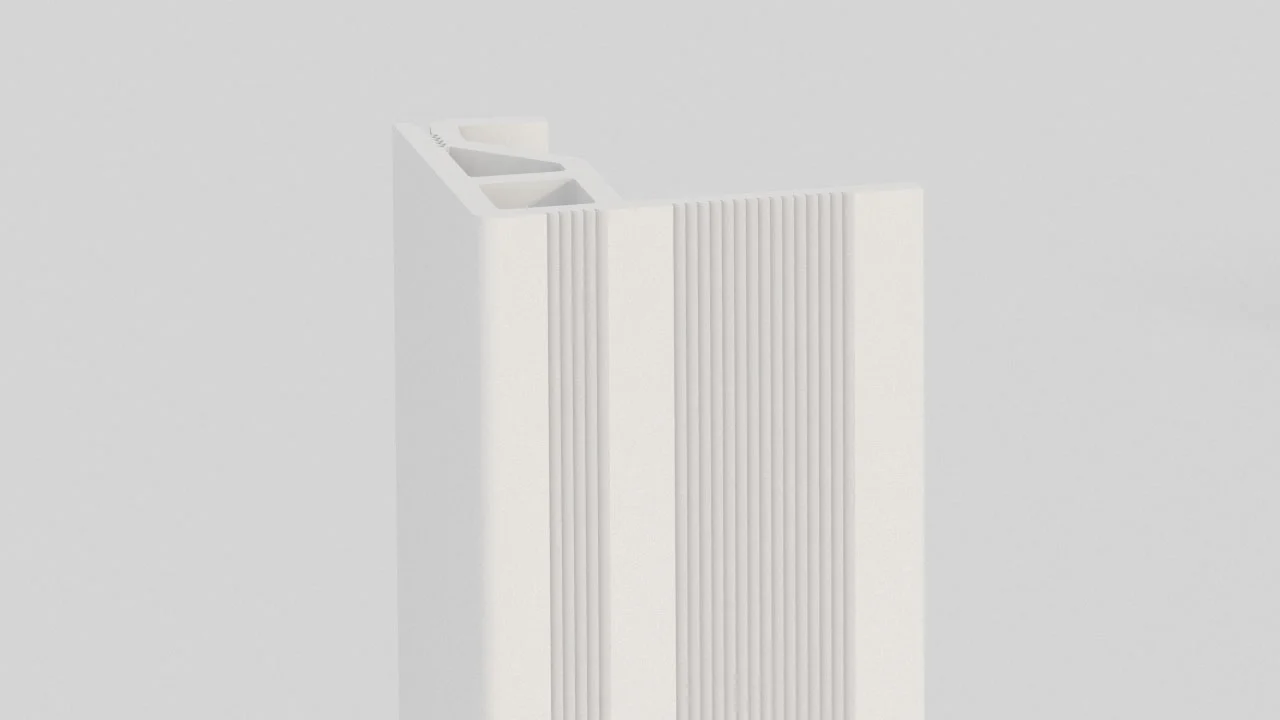

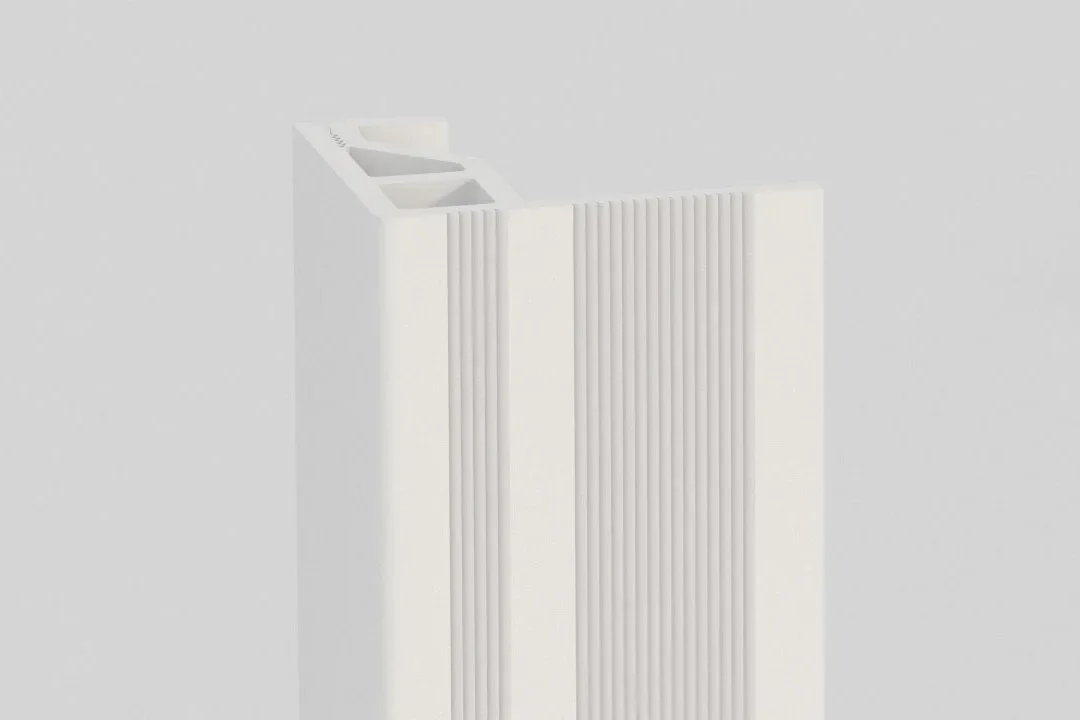

The bottom of Fabrix™ tracks come with the Anti-Slip feature. This signature tactile feature separates the authentic Fabrix™ tracks from counterfeit versions. The Anti-Slip feature allows adhesives applied to the back of the track to have higher pull-out strength, and prevents excess adhesive from seeping out at the sides.

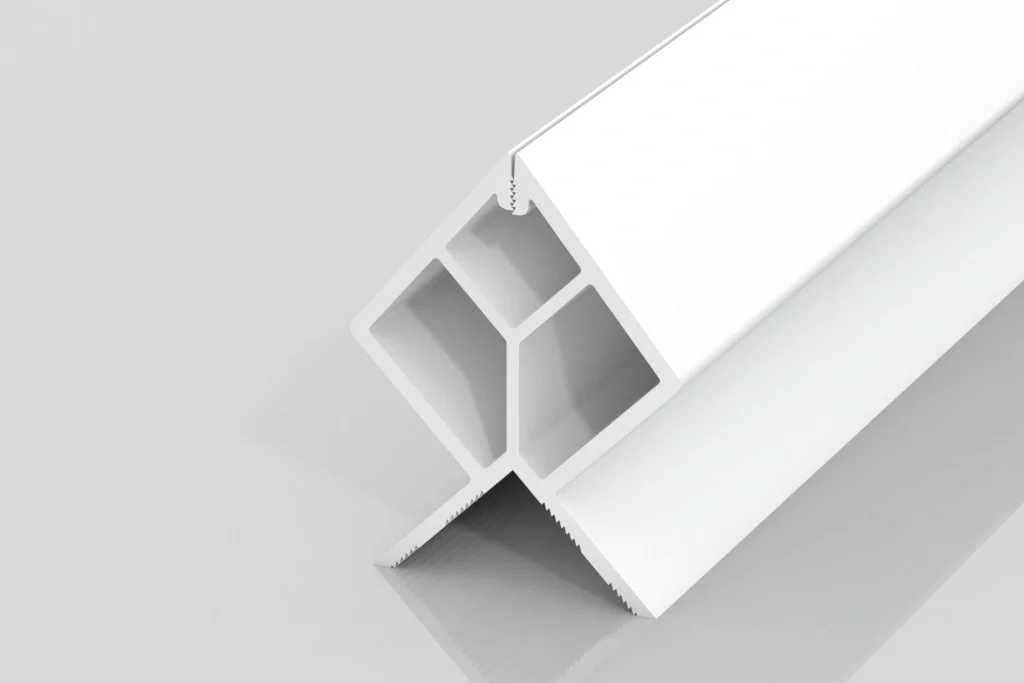

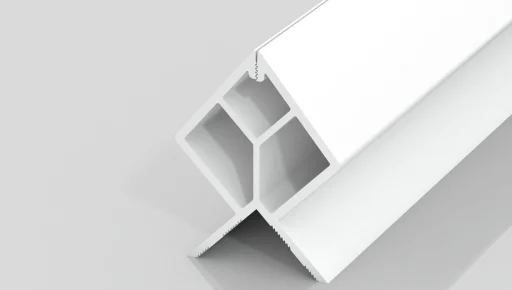

Fabrix™ tracks come in 3 different profiles (square, bevel, and round), 3 different heights (1/2-inch, 1-inch, and 2-inch), and 2 different mechanisms (load and snap). This makes us the largest manufacturer of fabric tracks with the most profiles in the world.

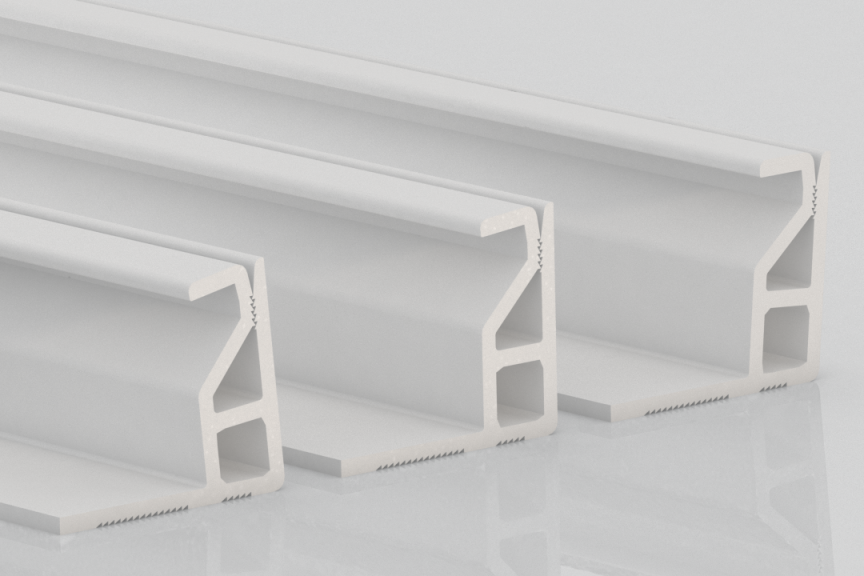

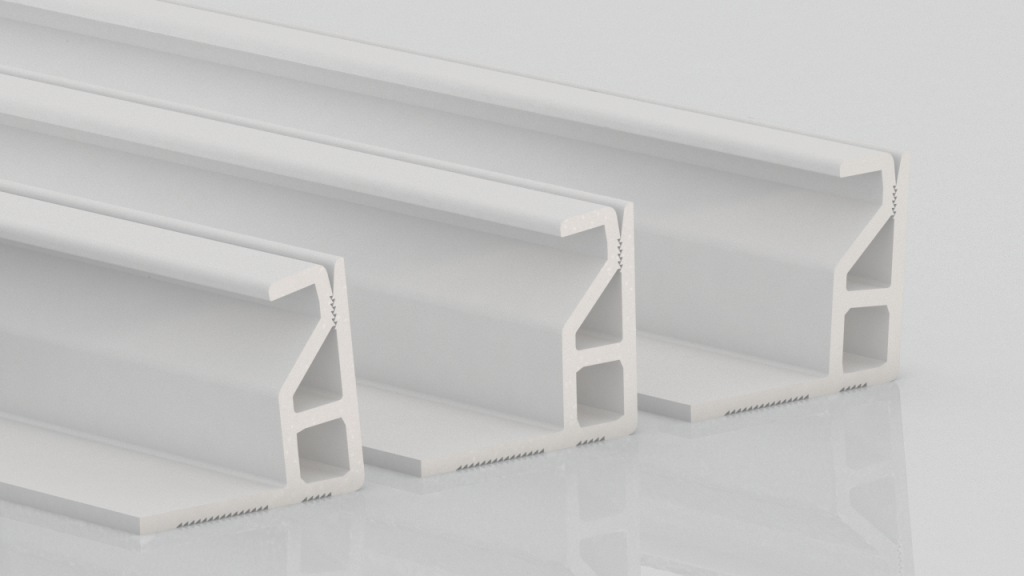

Fabric with high tensile strength can cause the tracks to warp during installation, which leaves an unsightly mark on the fabric surface. Fabrix™ tracks have a proprietary Anti-Warp feature that prevents imprinting the fabric surface.

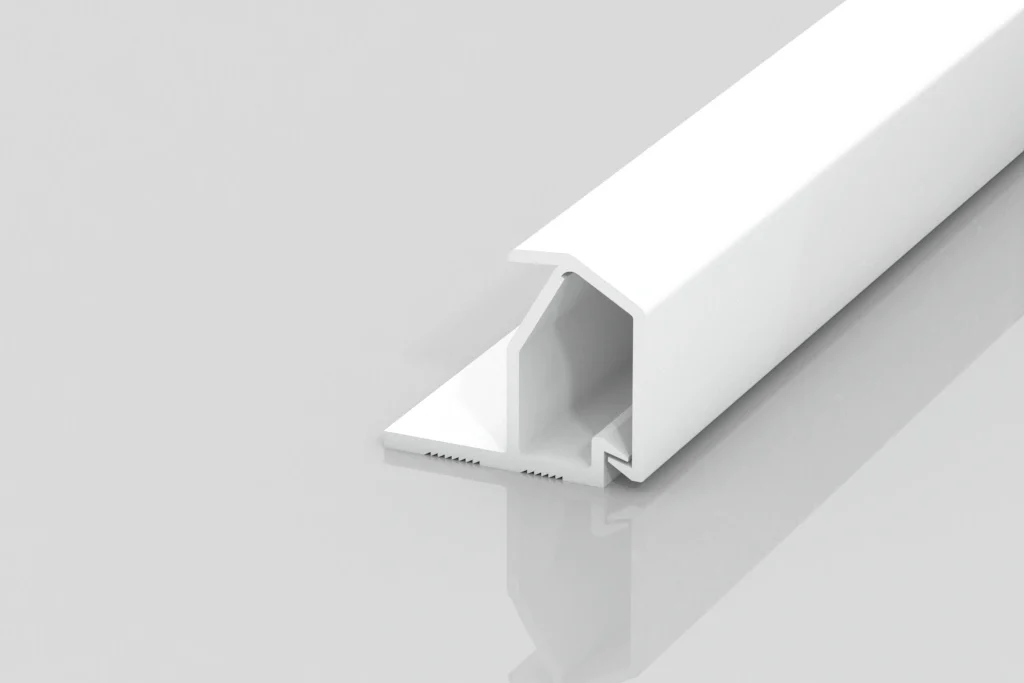

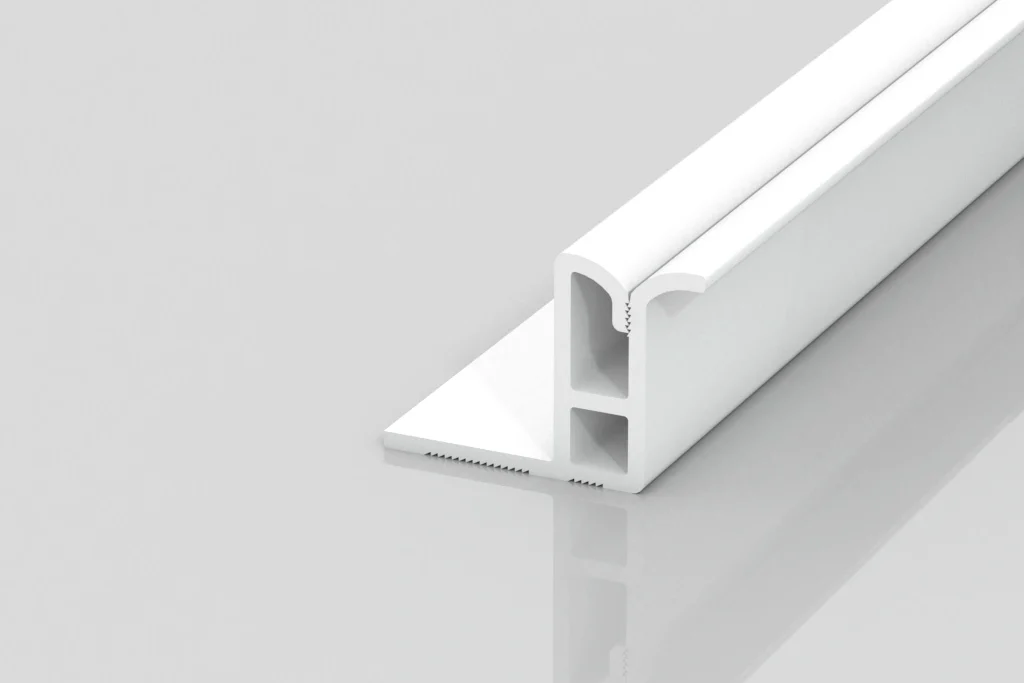

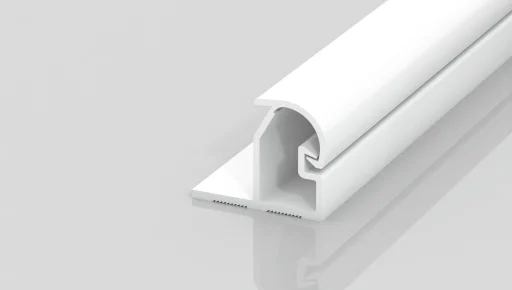

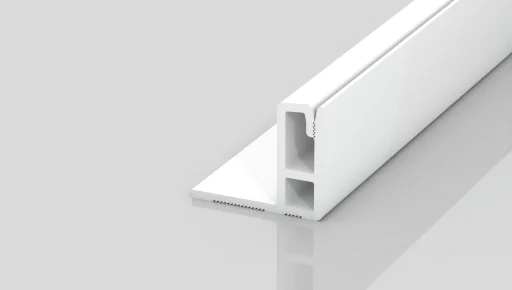

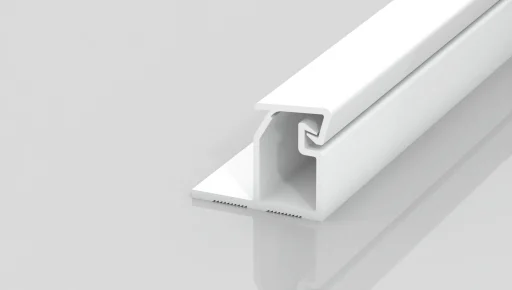

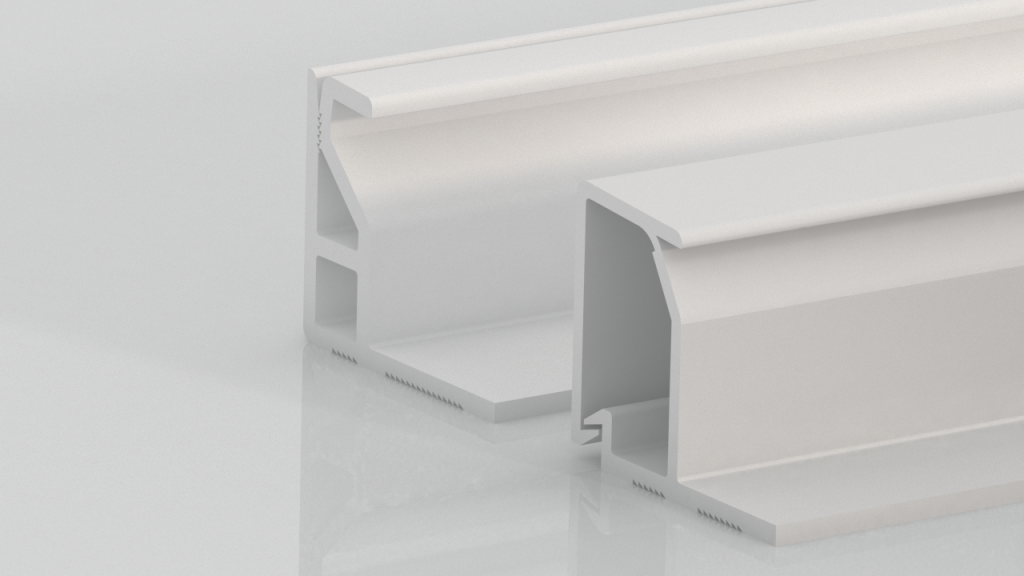

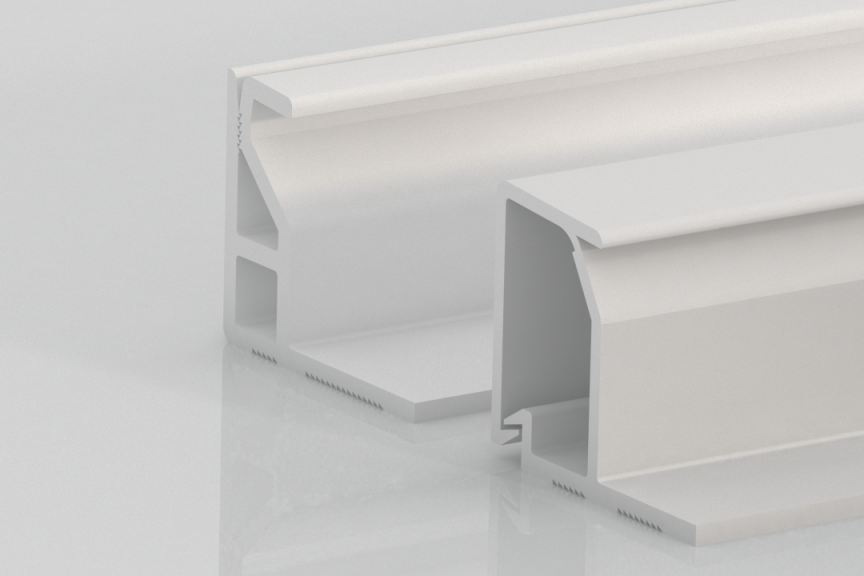

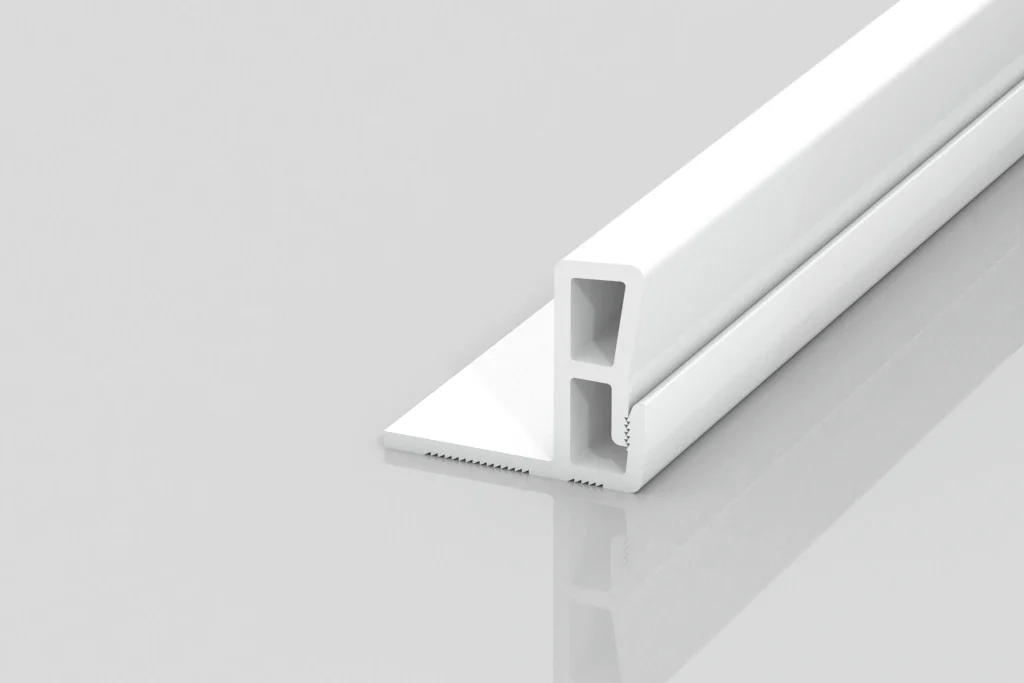

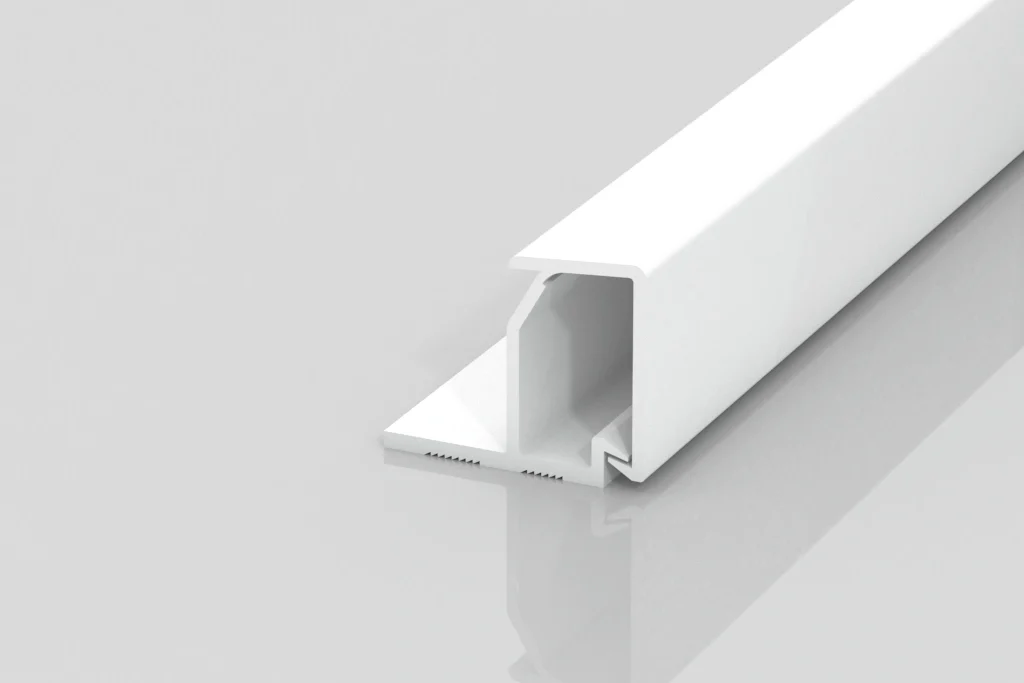

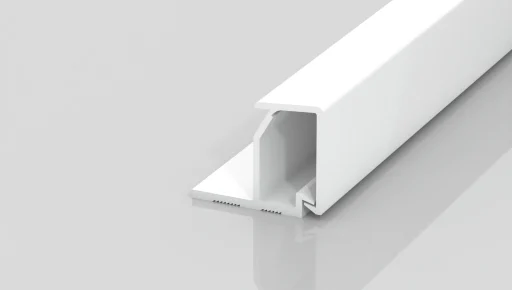

There are 2 types of mechanisms to secure the fabric with the tracks. The Load Mechanism enables the fabric to sit tightly in between the teeth of the track. The teeth are serrated downwards to keep the fabric from slipping out. The Snap Mechanism has a flexible polymer hinge that allows the track to open and close its jaws. The fabric sits tightly in between the jaws of the track. Adhesive tape along the track keeps the fabric from slipping out.

Profiles

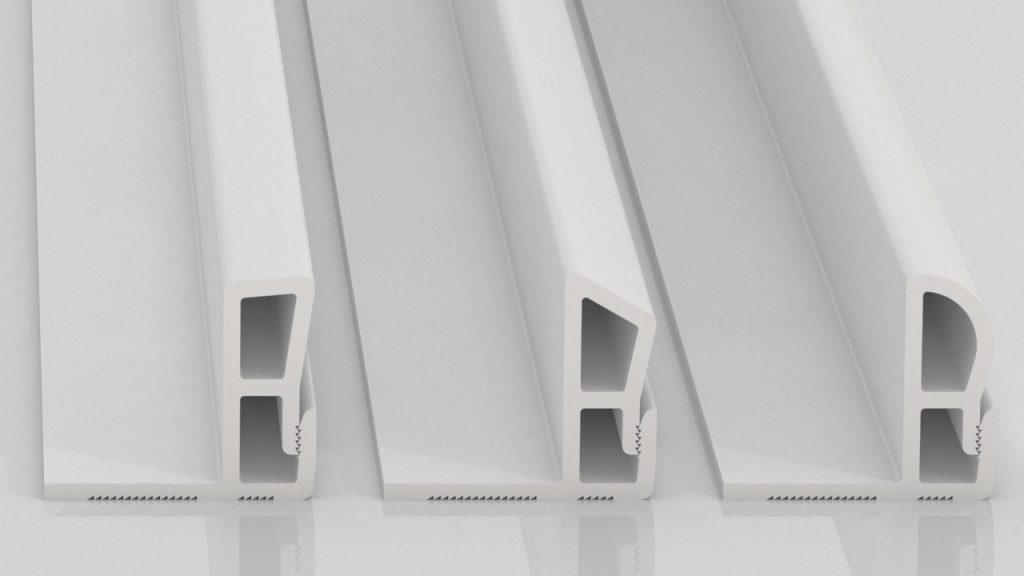

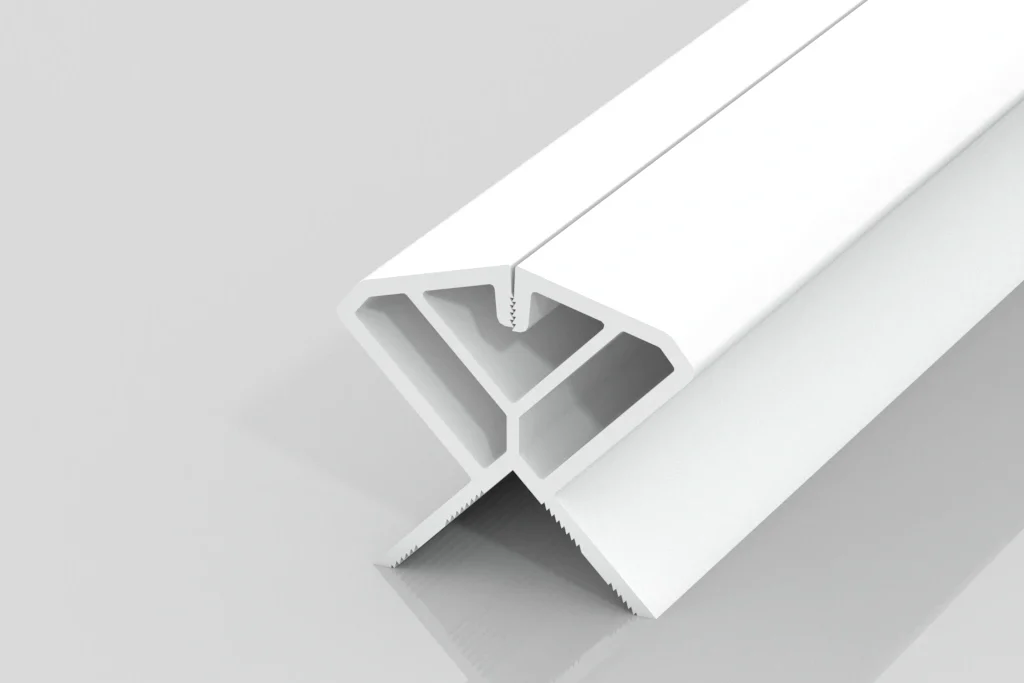

Fabrix™ tracks come in 3 different profiles (square, bevel, and round), 3 different heights (1/2-inch, 1-inch, and 2-inch), and 2 different mechanisms (load and snap). Specialty profiles are available for modular panel fabrication too.

We constantly innovate and design new profiles to fit with the evolving landscape of fabric architect. As of today, we have a total of 47 different profiles and counting. This makes us the largest manufacturer of fabric tracks with the most profiles in the world.

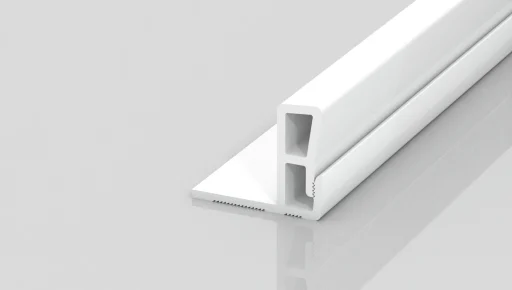

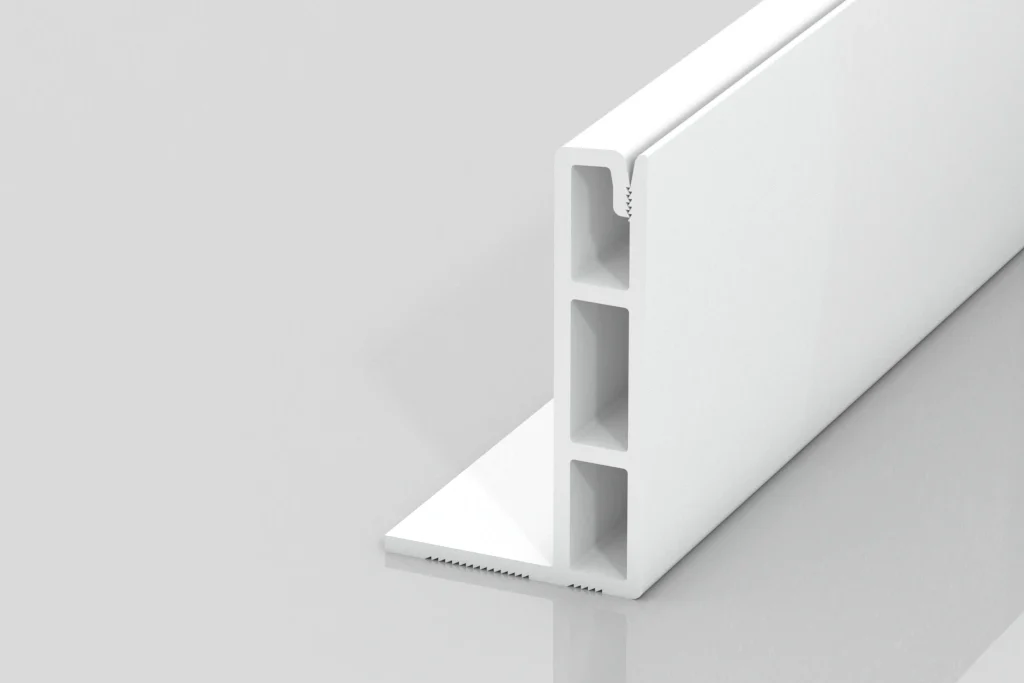

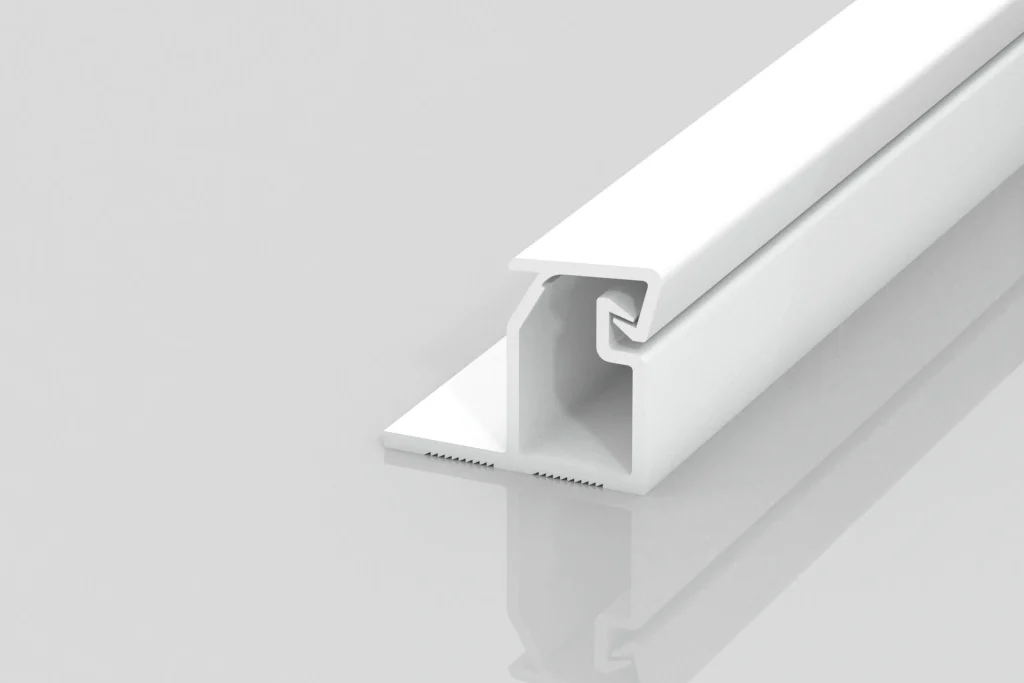

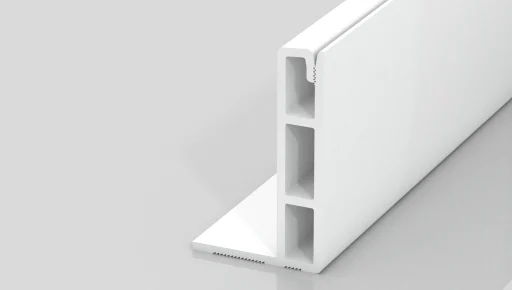

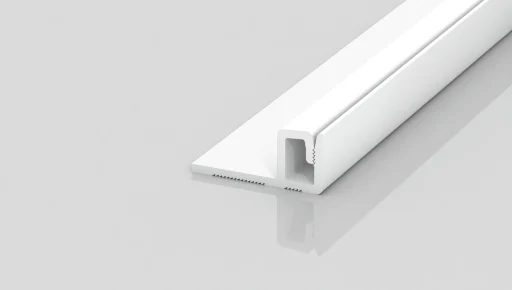

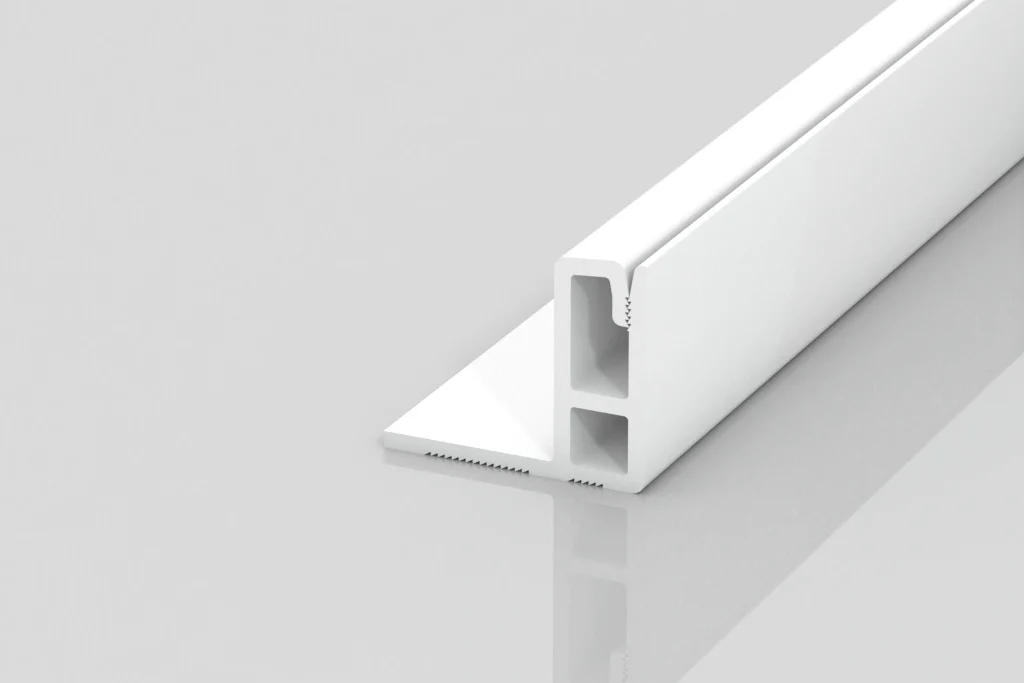

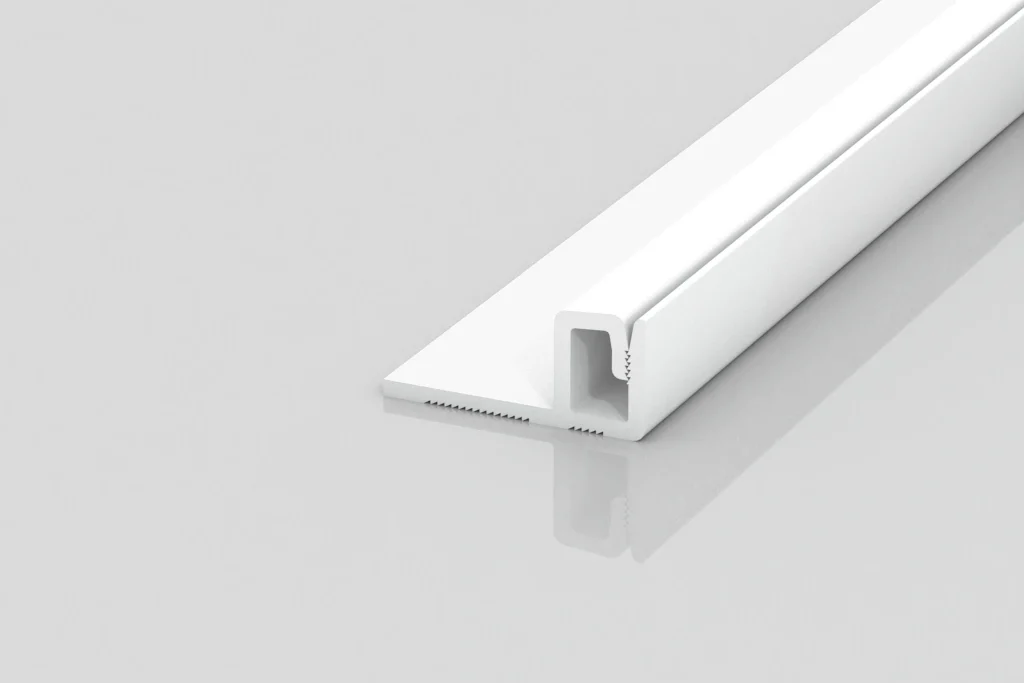

Square profiles come in 3 different heights (1/2-inch, 1-inch, and 2-inch), and 2 different mechanisms (load and snap).

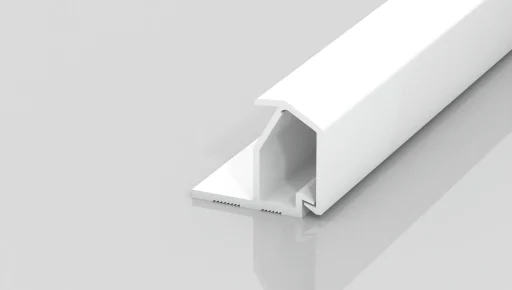

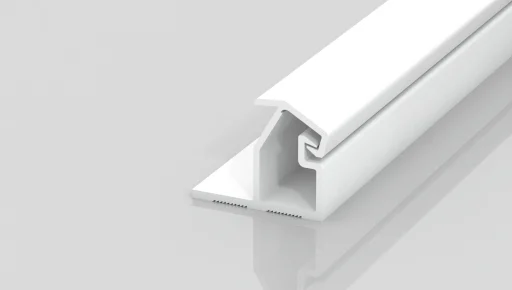

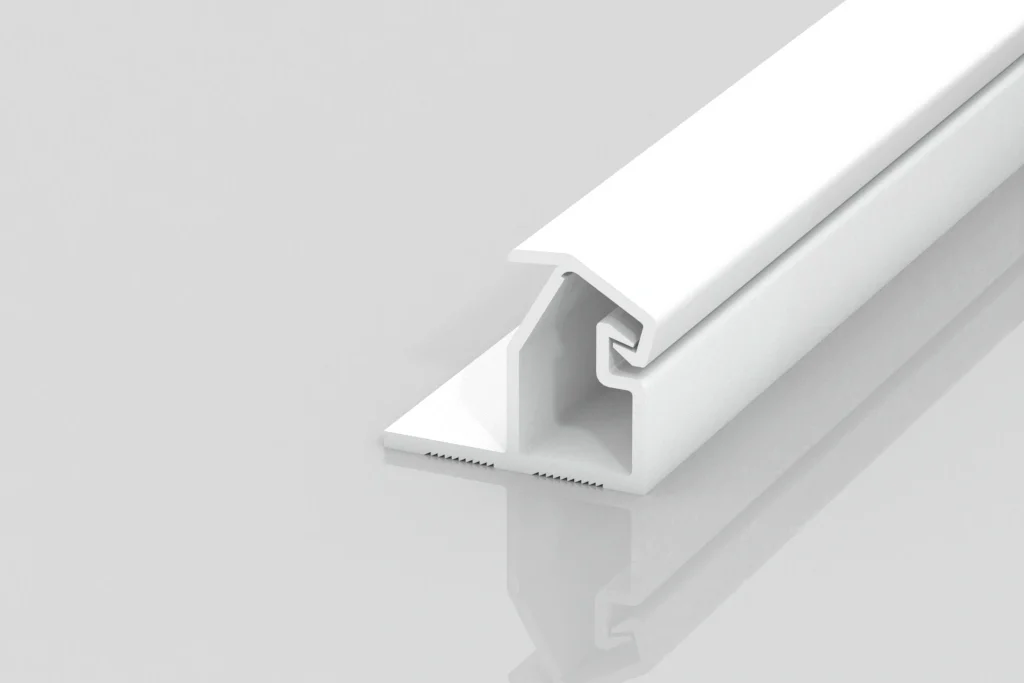

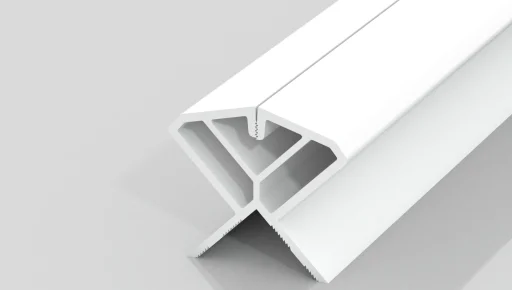

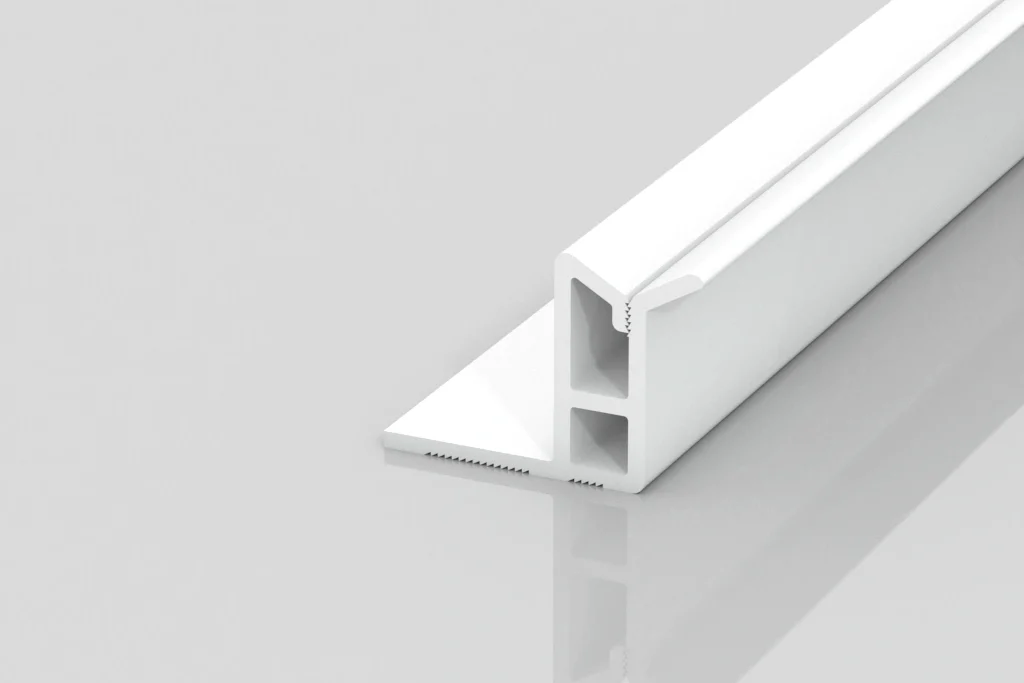

Bevel profiles come in 3 different heights (1/2-inch, 1-inch, and 2-inch), and 2 different mechanisms (load and snap).

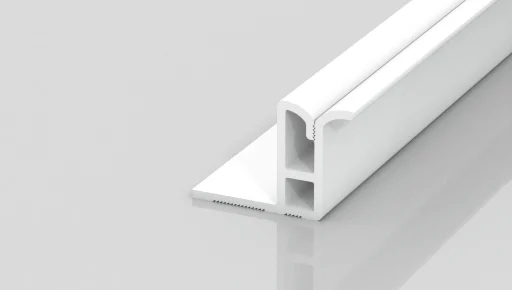

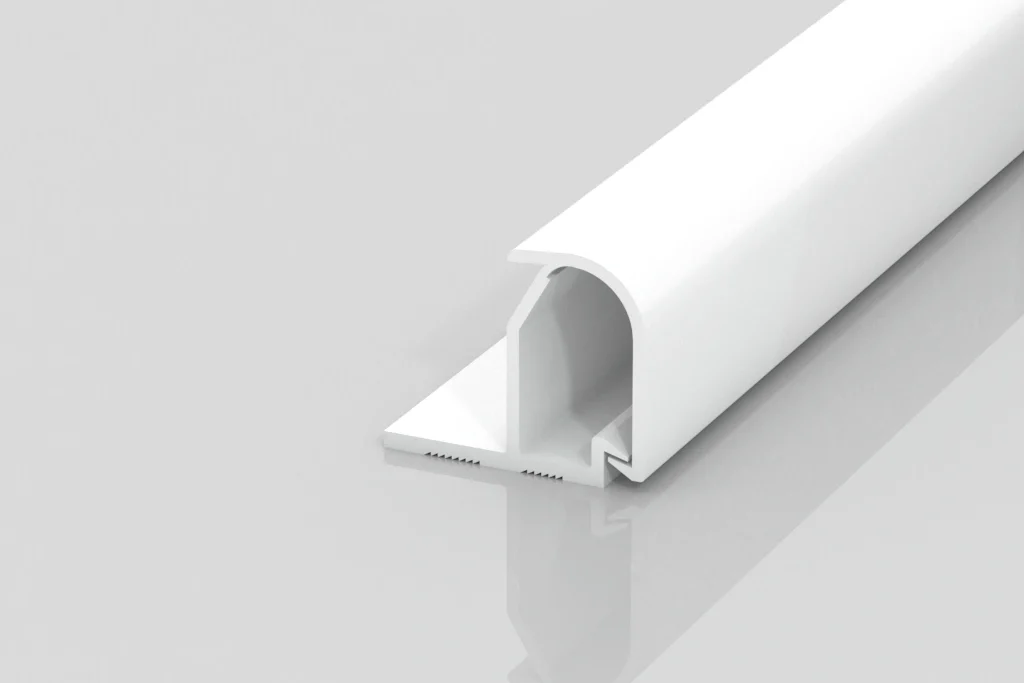

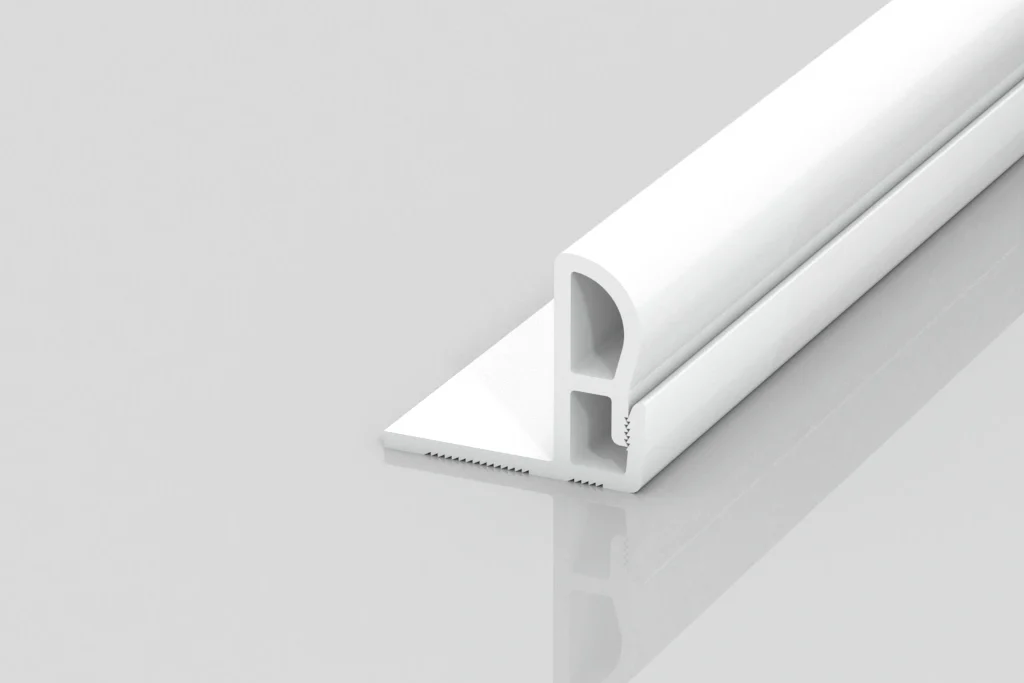

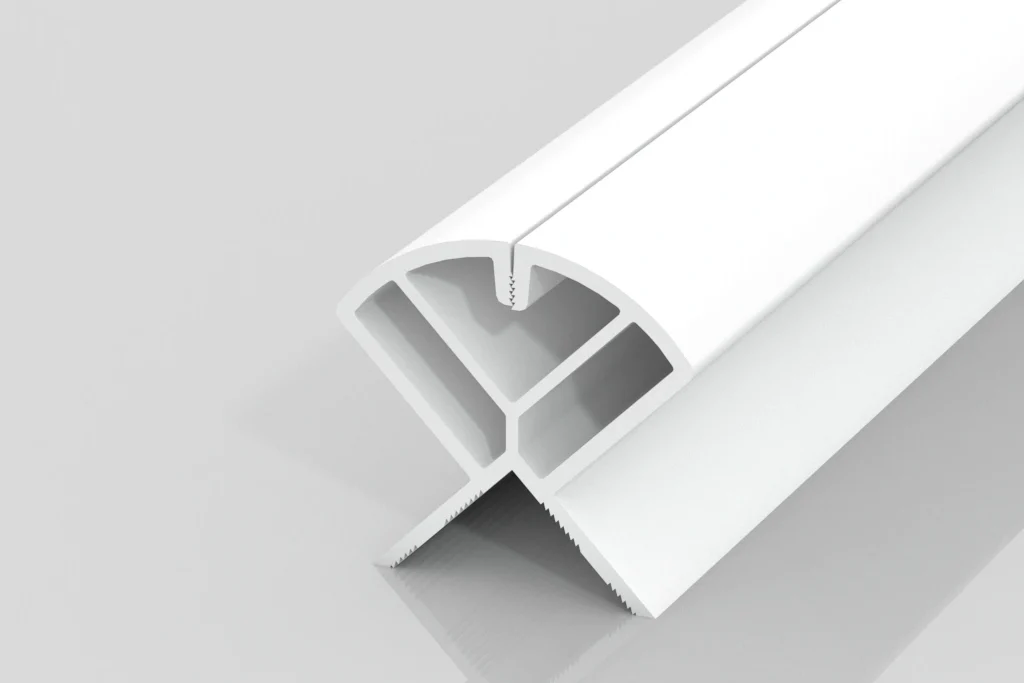

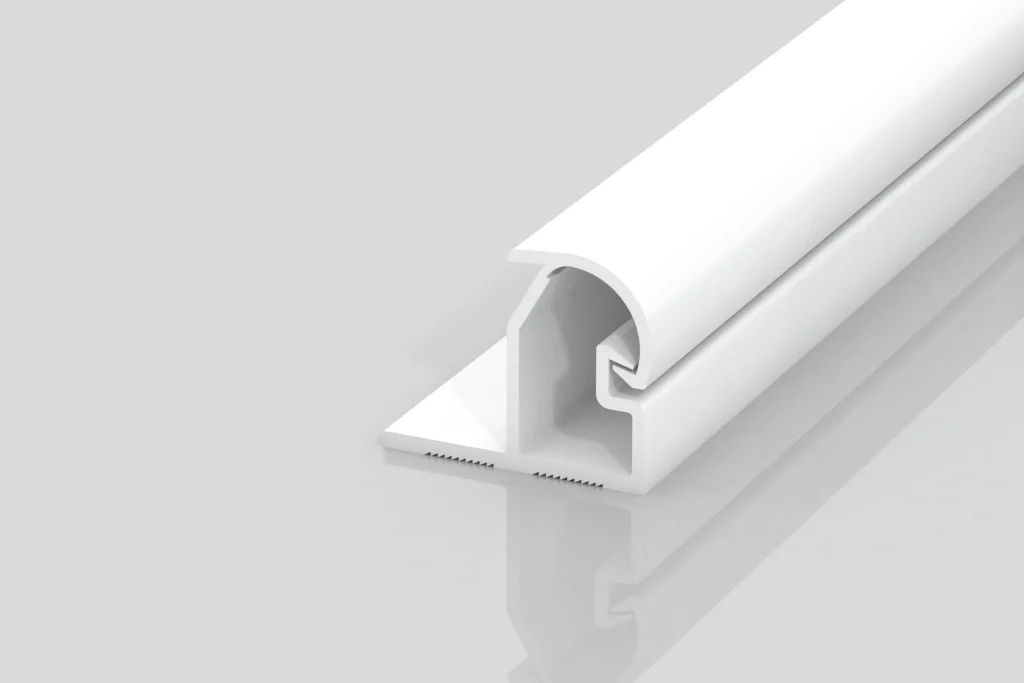

Round profiles come in 3 different heights (1/2-inch, 1-inch, and 2-inch), and 2 different mechanisms (load and snap).

Standards

Profile: Square, Bevel, Round
Mechanism: Load, Snap
Material: Polymer
Standard Dimension: 2000mmL
Standard Thickness: 2mm

BS 6853 Annex B = R < 1.0

EN 13501-1 = Class B, s1 d0

EN 11925-2 = Fs ≤ 150mm in 60s

EN 13823 = s1 d0

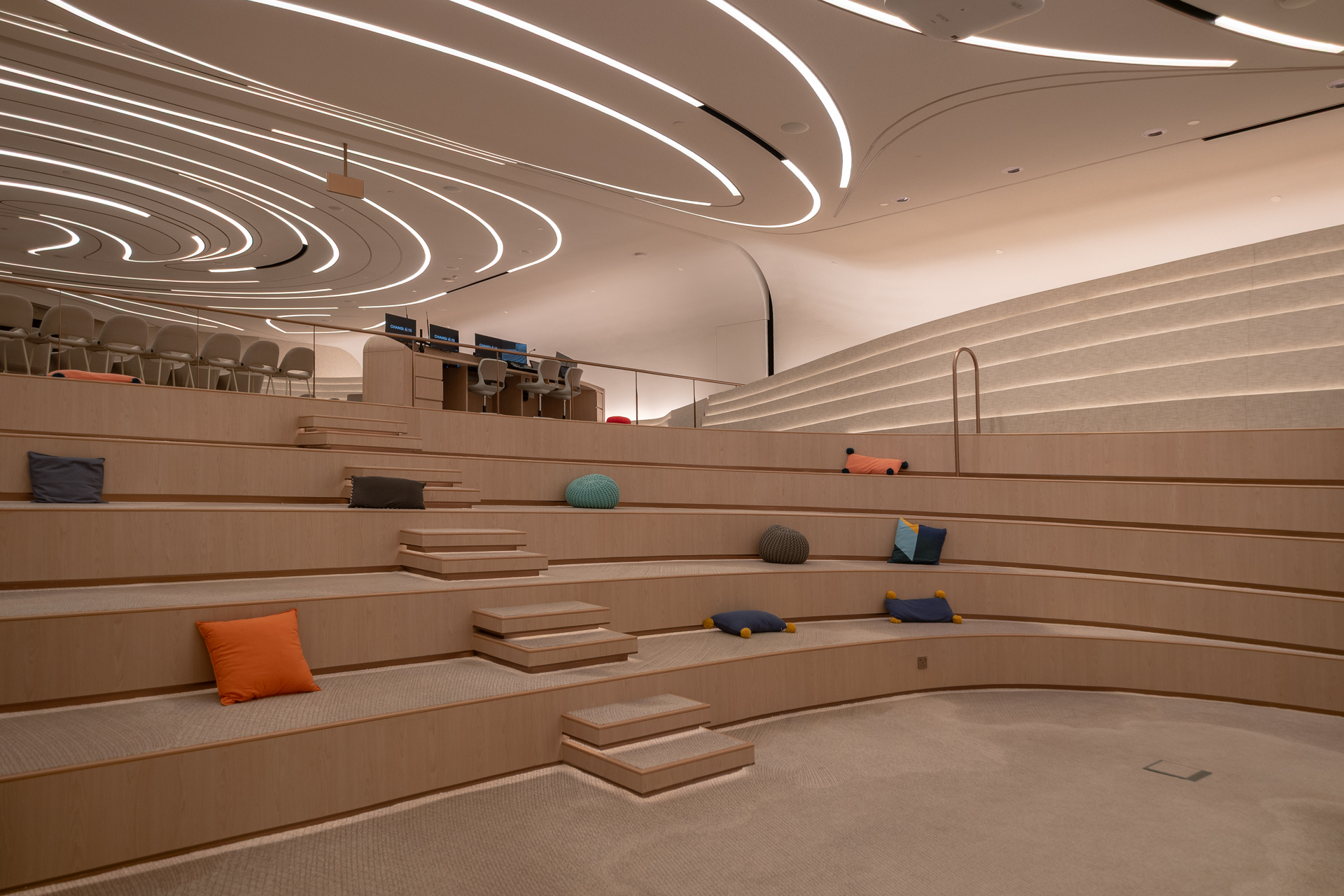

Buckminister Collaboration Space
